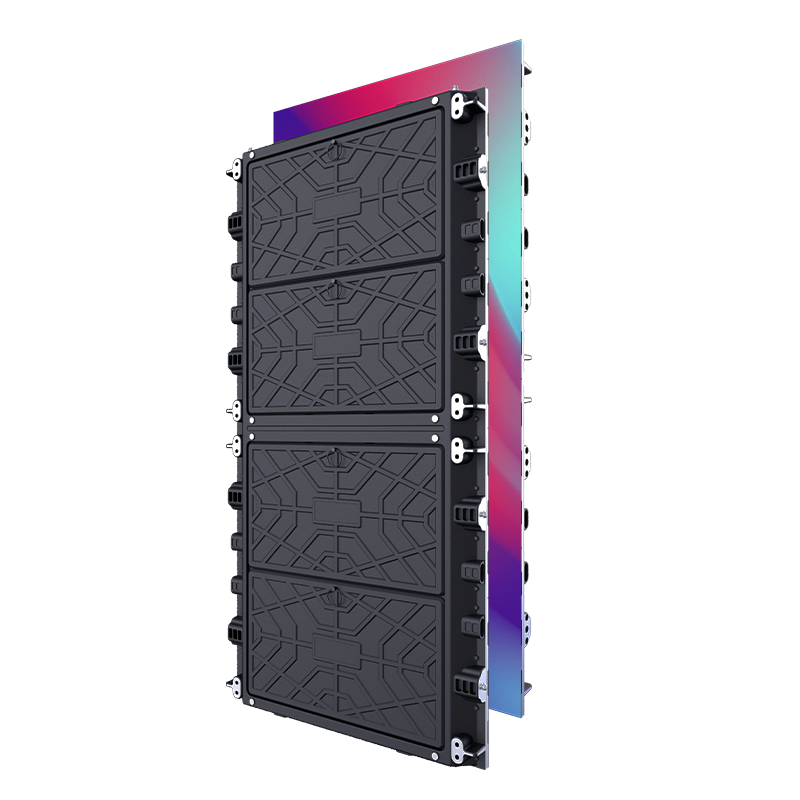

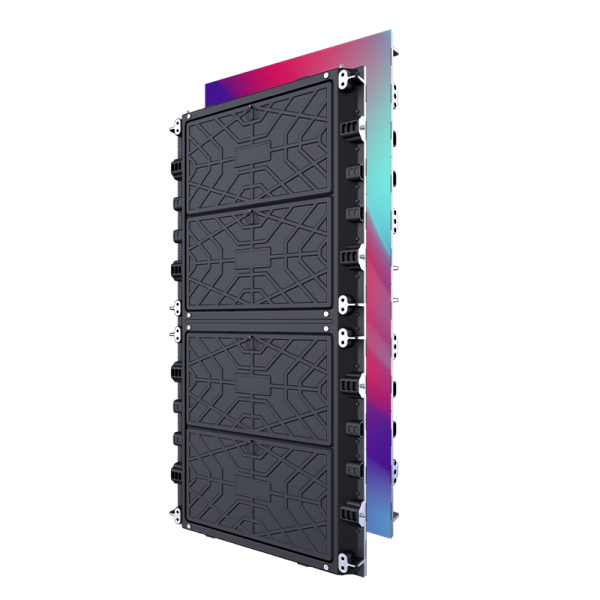

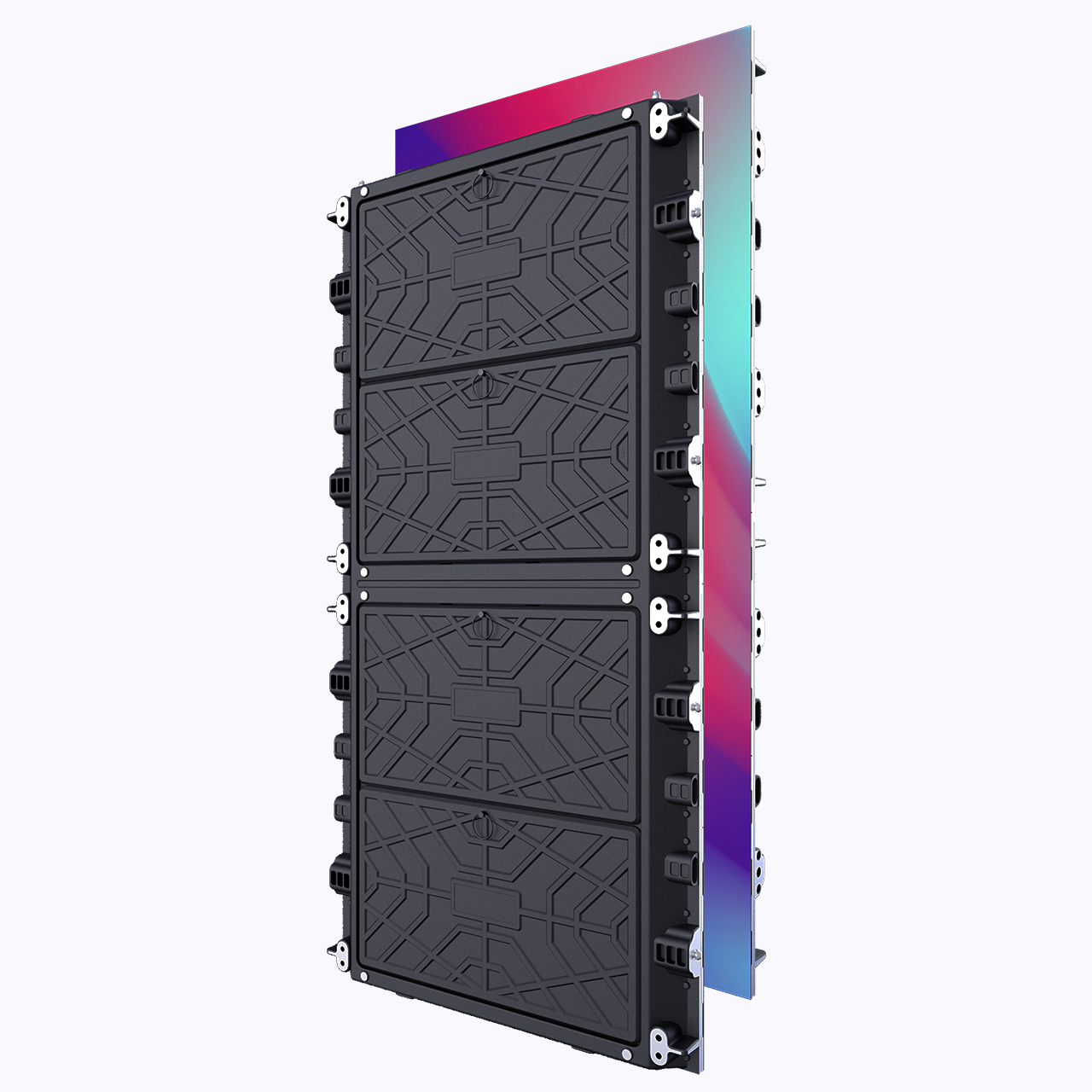

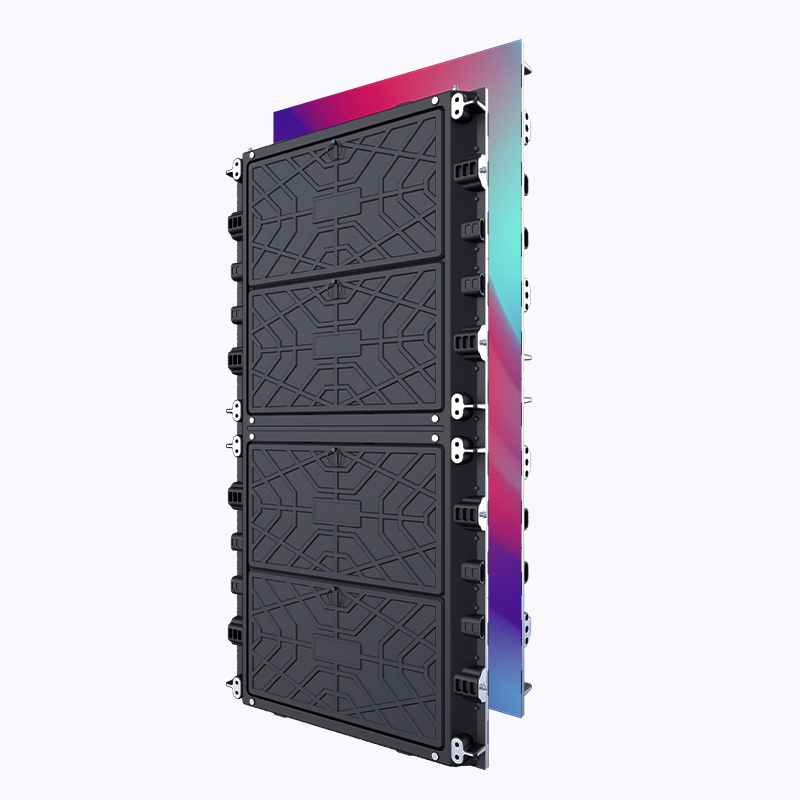

The MC Series,designed for different applications of fine indoor display,is available from p1.25 to p3.9mm pixel pitches,effectively addressing user demands with remarkable adaptability.
Pixel Pitch: 1.25mm, 1.54mm,1.89mm,2.6mm,3.9mm
Panel Dimension:
500(W)*1000(H)*45(D)mm,500(W)*500(H)*45(D)mm,
500(W)*250(H)*45(D)mm,250(W)*500(H)*45(D)mm

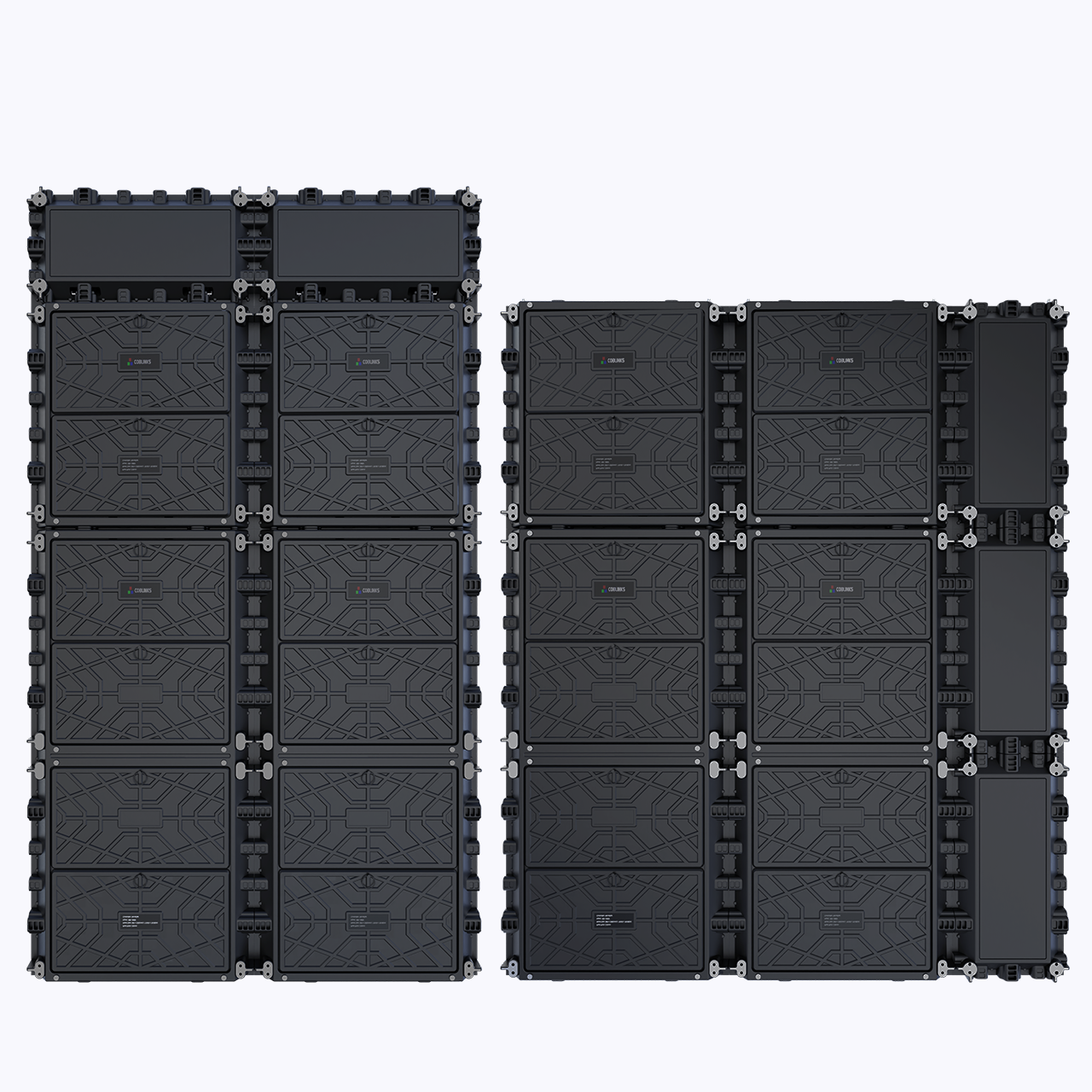

The MC series features 4 types size that meet your project,which can be mixed freely and matched to create new display.
Improved on previous design,the MC series offers multi-angle shielding against physical shocks and environmental stressors, guaranteeing unyielding protection coverage for sensitive components.
1.Each module is equipped with 16 magnets for superior flatness and anti-warping
2.Adding 4 positioning posts (alignment pins)supports the PCB board ,ensuring better flatness and preventing deformation
3.The upper and lower ribs and the ribs at the four corners of the cabinet make the panels stronger and less prone to deformation.
4.Uniform notches on the cabinet edges facilitate balanced heat dissipation from the modules.
Equipped with stylish and magnetic decoration backside, MC panel introduces a touch of modern elegance to an space.Providing a meticulously engineered, high-precision mounting frame, seamless integration into any environment is a breeze.
Optional dual backup of received card and power supply is available for scenarios like TV studio or stations,offering you an immersive viewing experience.
Standard Dynamic Range(Normal LED)
High Dynamic Range(MC P1.25 LED)
The MC cabinets can be directly cut into 45-degree beveled edges (angled cutting) from two sides,conveniently creating various shapes on-site for unparalleled visual experience.
Supports diverse installation, flexible for various scenarios
1.Wall-mounting solution enables a thickness of less than 65mm, enhancing appearance and esthetic feeling
2.Hanging solution maximizes space utilization

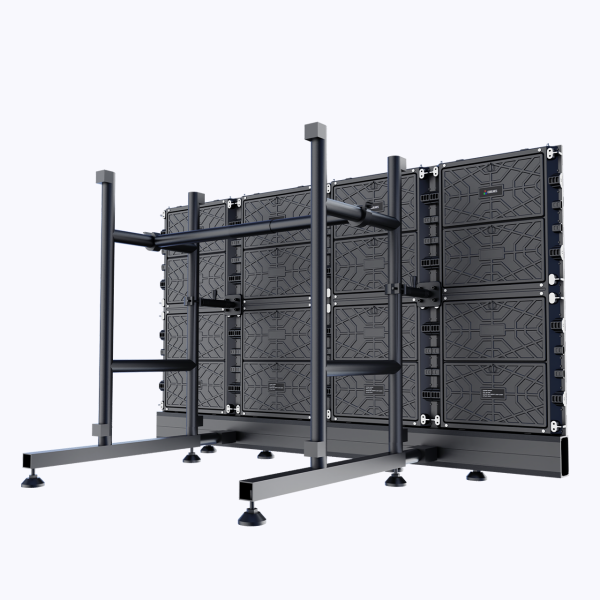

3.Optional Free-standing floor installation
| Model | MC1.25 | MC1.54 | MC1.89 | MC2.6 | MC2.9 | MC3.91 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.54 | 1.89 | 2.6 | 2.9 | 3.91 |
| Physical Density (dot/m²) | 640,000 | 419,904 | 278,784 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Module Size (mm) | 200×200 | 162×162 | 132×132 | 250×250 | ||
| Module Resolution (dots) | 160×160 | 105×105 | 70×70 | 96×96 | 84×84 | 64×64 |
| Cabinet Size (mm) | 500×1000×45 / 500×500×45 / 500×250×45 / 250×500×45 | |||||
| Scanning Mode | 1/50 | 1/54 | 1/44 | 1/32 | 1/28 | 1/16 |
| Cabinet Material | Die-casting Aluminum | |||||
| Weight (KG/PCS) | 12.5KG / 6.5KG / 4.5KG | |||||
| Brightness (cd/m²) | 600 | 600 | 600 | 800 | 800 | 800 |
| Refresh Rate (Hz) | ≥3840 | |||||
| Viewing Angle (H/V) | 160°/160° | |||||
| Grey Scale (bit) | 16 | |||||
| Input Voltage (V) | AC110-AC220 | |||||
| Avg. Power Consumption (W/m²) | 145 | 153 | 148 | 192 | 192 | 195 |
| Max. Power Consumption (W/m²) | 435 | 459 | 445 | 576 | 576 | 585 |
| Maintenance Mode | Front&back | |||||
| IP Grade | IP40 | |||||
| Operating Temperature (°C) | -20~ +50 | |||||
| Working Humidity (RH) | 10%~90% | |||||
| Storage Temperature (°C) | -30~ +70 | |||||
| Storage Humidity Range (RH) | 10%~90% | |||||
| Life Span (H) | ≥100,000 | |||||
Multiple Cabinet Sizes, Free Mixed Splicing 4 cabinet sizes (250×500mm to 500×1000mm) mix and match freely — create standard walls, arcs, curves, or fully custom creative shapes.
0°–90° Rotation & Arc Splicing Concave, convex, and rotated configurations supported. Maximum creative freedom for any installation design.
Screw-Free Magnetic Modules Tool-free module installation and removal. Magnetic backside cover for fast disassembly — no loose hardware on site.
Three-in-One Integrated HUB Power supply, HUB, and receiver card combined in a single unit — fewer components, faster maintenance, cleaner wiring.

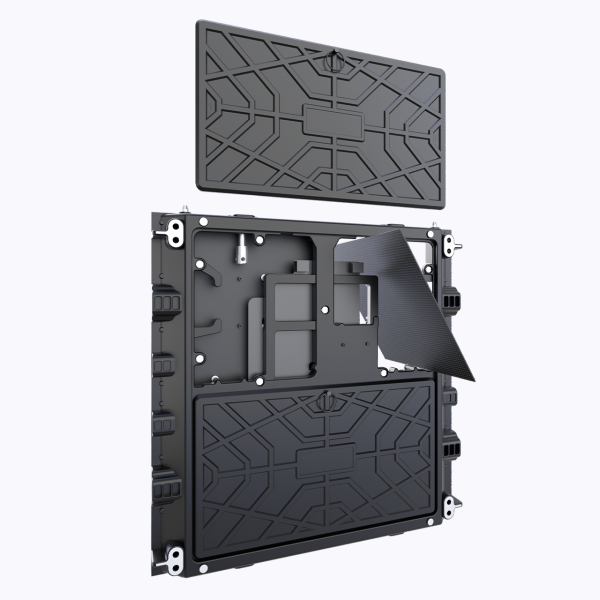

Front & Rear Maintenance Full access to modules, power supply, and HUB from both sides — servicing flexibility for any installation environment.
Multi-Function Installation Supports wall-mounting (screw-free), suspension arm, floor standing, and video cube configurations.
≥3,840 Hz Refresh Rate Flicker-free imaging with lifelike color and sharpness — camera and broadcast ready.
GOB & XR Virtual Ready Optional GOB protection, XR virtual production, semi-outdoor use, and onboard calibration data storage.
Retail & Supermarkets Permanent in-store displays that drive product engagement — wall-mounted or free-standing, fits any floor plan.
Museums & Cultural Venues Curved and rotated configurations create immersive visual environments for exhibitions and permanent collections.
Airports & Transit Hubs High-refresh, flicker-free panels deliver clear passenger information and advertising in high-footfall spaces.
Churches & Worship Spaces Clean wall-mount installation with no exposed hardware — unobtrusive design suits sensitive architectural interiors.
Corporate Lobbies & Showrooms Creative cabinet mixing builds statement display walls that reflect brand identity in premium commercial spaces.
Metro Stations & High-Speed Rail Durable, low-maintenance panels with front & rear service access — ideal for continuous operation in public infrastructure.
Flexible LED displays open up a world of creative shapes beyond flat panels. The most common and impactful forms include:
Curved and Cylindrical Shapes: Widely used for columns, pillars, or immersive tunnel experiences. By wrapping the display around a cylinder, you create 360° viewing.
Spheres and Globes: Segmented flexible panels can form near-perfect spheres, often used for planetary installations, digital art, or storefront centerpieces.
Wavy and Organic Flows: Ribbon-like, undulating walls mimic natural movements. Popular in stage designs, museums, and lobbies to create dynamic, fluid backdrops.
Twisted or Helical Forms: A spiral or DNA-like twist grabs attention in retail spaces or tech exhibitions, offering a futuristic aesthetic.
Cubic or Corner Wraps: Seamlessly covering 90° corners or entire columns with continuous visuals makes architecture come alive.
Concave/Convex Panels: Shallow dishes or bulging shapes work well for focal displays, such as a "digital sun" or immersive cave environments.
These shapes maximize the flexibility and lightweight nature of LED modules, enabling designers to break free from rectangular constraints and turn any surface into a vibrant storytelling canvas.
A flexible LED screen significantly amplifies the visual impact of advertising displays by breaking free from the constraints of rigid, flat panels. Its ability to bend, curve, and wrap around columns, corners, or irregular surfaces allows brands to create immersive, site-specific installations that capture attention in ways traditional screens cannot. For example, a seamless cylindrical display in a mall lobby or a wave-shaped screen along a building's facade turns advertising into an architectural feature, drawing the eye through novelty and scale.
Moreover, flexible LEDs support ultra-thin, lightweight designs with no visible bezels, enabling smooth, continuous visuals across complex forms. This eliminates distracting gaps and allows for dynamic, wraparound content that feels three-dimensional and engaging. Advertisers can also integrate motion sensors or interactive elements, as the screen's pliability makes it easier to install on movable structures. The result is a memorable, high-impact experience that stands out in cluttered environments, boosts brand recall, and encourages passersby to stop and engage — transforming ordinary ad spaces into captivating visual spectacles.
Flexible LED displays are generally less durable than fixed indoor LED panels, though the gap has narrowed with recent advancements. Fixed indoor panels use rigid PCBs, robust enclosures, and standard SMD LEDs, offering high resistance to vibration, temperature changes, and physical impact. They are designed for long-term, stationary use with excellent heat dissipation and stable solder joints.
Flexible LED displays, built on thin, bendable substrates like polyimide or flexible PCB, prioritize adaptability for curved or irregular surfaces. This flexibility introduces trade-offs: the bending can stress solder connections over time, and the lack of a rigid frame makes them more vulnerable to punctures, creasing, or delamination. Their heat management is also less efficient due to thinner materials, potentially shortening LED lifespan. However, high-quality flexible panels with proper installation (set to a fixed curve rather than repeatedly flexed) can approach the durability of fixed panels for many indoor applications.
In summary, for static installations on flat or gently curved walls, flexible displays can be adequately durable. But for environments with frequent handling, potential impacts, or need for high thermal stability, fixed indoor panels remain the more robust choice.
