Outdoor advertising has changed significantly as brands move from static signs to dynamic digital communication. An outdoor LED screen can display video, images, text, animations, and changing advertising content while remaining visible in demanding outdoor conditions. At Coblinks, we manufacture customized LED display solutions designed around different installation environments and project requirements. For customers looking for an LED screen for advertising outdoor, understanding how the display works is important when selecting the right product structure and specifications.
How an Outdoor LED Screen Creates Advertising Images
An LED display is made from many individual light-emitting diodes arranged into pixels. Each pixel contains red, green, and blue components that can be controlled at different intensities. By combining these colors, the display produces a wide range of images and video content.
The smaller the pixel pitch, the closer the LEDs are positioned to one another and the more detailed the image can appear at an appropriate viewing distance. However, outdoor advertising projects also require sufficient brightness and environmental protection. This is why choosing an outdoor LED screen involves more than simply selecting the highest resolution.
For our MD Series, we provide outdoor pixel pitches of 2.9 mm, 3.91 mm, and 4.81 mm. The three outdoor models provide a brightness of 5,000 cd/m² and a refresh rate of at least 3,840 Hz. These specifications help the display produce bright, smooth visual content for outdoor applications.
Why Brightness Matters for an LED Screen for Advertising Outdoor
Outdoor displays must compete with natural sunlight. If the screen is not bright enough, advertising content can lose visual impact during daytime operation. For this reason, brightness is one of the key specifications we consider when developing an LED screen for advertising outdoor.
Our MD Series uses a full-black design and provides 5,000 cd/m² brightness across the outdoor MD2.9, MD3.91, and MD4.81 models. This allows advertisers and system integrators to select an appropriate pixel pitch while maintaining a consistent brightness specification across the outdoor range.
The refresh rate is another important consideration. The MD Series offers a refresh rate of ≥3,840 Hz, helping produce smooth moving images and reducing visible flicker in camera-based applications. For advertising projects that combine digital signage with photography, video production, or event coverage, this can be an important consideration.
How Customization Makes Outdoor Advertising More Flexible
A major advantage of LED technology is that the screen can be configured for different spaces rather than being limited to one standard format. At Coblinks, we provide custom support according to project requirements, including different cabinet configurations and irregular-shaped splicing.

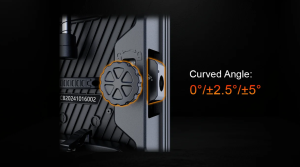

The MD Series uses magnesium alloy cabinets available in 500 × 500 mm and 500 × 1,000 mm formats. The panels weigh approximately 7 kg and 10.5 kg respectively, while front and rear maintenance are supported. The design also supports curved configurations of 0°, ±2.5°, and ±5°.
This flexibility can be useful when an outdoor LED screen needs to fit a particular advertising structure, architectural space, stage environment, or other non-standard installation. Instead of forcing every project into the same screen configuration, customers can work with our engineering team to determine a suitable combination.
How Outdoor Displays Handle Weather Conditions
Outdoor advertising equipment needs to withstand exposure to rain, dust, temperature changes, and other environmental conditions. The MD Series has an IP65 rating and is specified for operating temperatures from -20°C to +50°C, with working humidity of 10% to 90%. Its magnesium alloy frame is designed for outdoor applications, while the foldable wind-resistant frame supports outdoor hanging applications.
These characteristics are particularly relevant when an LED screen for advertising outdoor is installed in an exposed location. The screen structure, cabinet design, maintenance method, and environmental rating all need to be considered together rather than evaluating image quality alone.
Why We Focus on Custom LED Manufacturing
Established in 2017, Coblinks is a technology-driven LED display manufacturer with a 5,000-square-meter production facility for indoor and outdoor LED display products. The company works with global customers through OEM and ODM cooperation, focusing on customized manufacturing rather than screen rental services.
By supplying professional LED panels and display solutions for applications including rental, commercial, and fixed installations, Coblinks concentrates on product development, manufacturing quality, and long-term technical support. For buyers, selecting the right LED display also requires careful consideration of factors such as pixel pitch, brightness, installation conditions, and maintenance requirements.
Building the Right Outdoor Advertising Display
A successful outdoor advertising system starts with understanding where and how the screen will be used. At Coblinks, we combine manufacturing capabilities with engineering support to help customers determine suitable specifications for their projects.
Whether the requirement is a conventional large-format advertising installation or a customized structure, an LED screen for advertising outdoor can provide a flexible platform for dynamic visual communication. With suitable brightness, refresh rate, environmental protection, cabinet configuration, and customization, an outdoor LED screen can be engineered to meet the practical requirements of different outdoor projects.
For businesses, integrators, and rental companies sourcing customized LED display products, Coblinks provides professional manufacturing and ODM/OEM support to turn project requirements into reliable display solutions.
