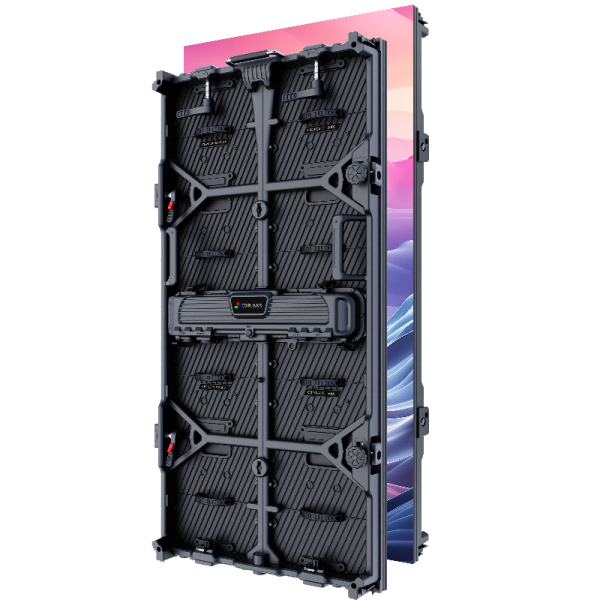

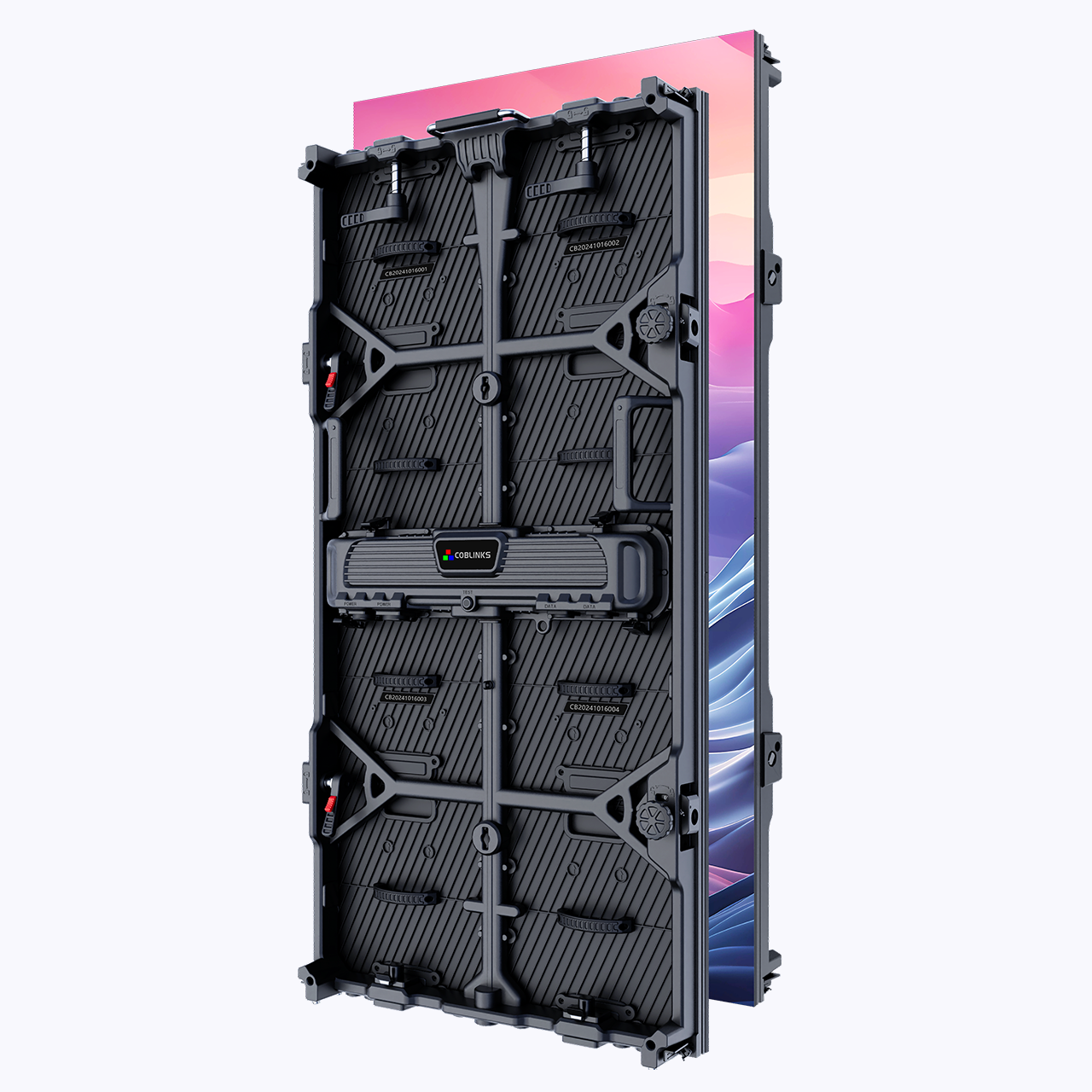

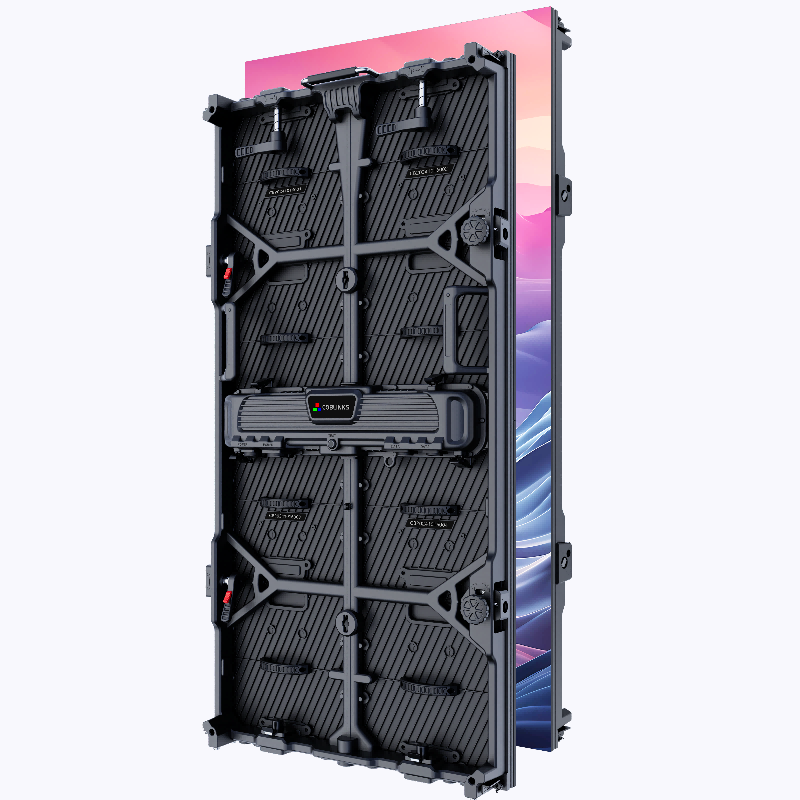

Building outdoor LED screens can be a challenge.The MD panels by
Coblinks are designed as your fast-building,wind-load resistant LED
screen solution.
Indoor Pixel Pitch available: 1.9mm, 2.6mm, 2.9mm, 3.9mm
Outdoor Pixel Pitch available: 2.9mm, 3.9mm, 4.8mm
* Lightweight design
* Strong magnetic design
* Corner protector
* Front & Back maintenance
* Irregular -shaped splicing available
* Foldable wind-resistant frame
* Matched touring dolly
* Irregular assembly
Ultra-light magnesium alloy frame for fast installation, more stable and safe, more convenient for maintenance
500mm x 500mm panel: light to 6.7kg
500mm x 1000mm panel: light to 9.8kg
Areospace-grade magnesium alloy adopted for the MD panel frame, delivering amazing in-camera performance and excellent appearance, reducing the light reflection effectively, and finally improving the contrast, which makes the images displayed vividly
1.Strong magnet design
Allowing panels to be secured in seconds with upper and lower strong magnets
2.Adjustable Curved Locking System
For fast and precise positioning to make sure the perfect curvature and seamless transitions, the curvature can be adjusted from 0°/±2.5°/±5°
The MD panel features an anti-collision design with flip-over protective corners and edge protrusion structures,preventing direct collision between LEDS and the ground to effectively protect edge LEDs.
The module can take out from front and back both for maintenance

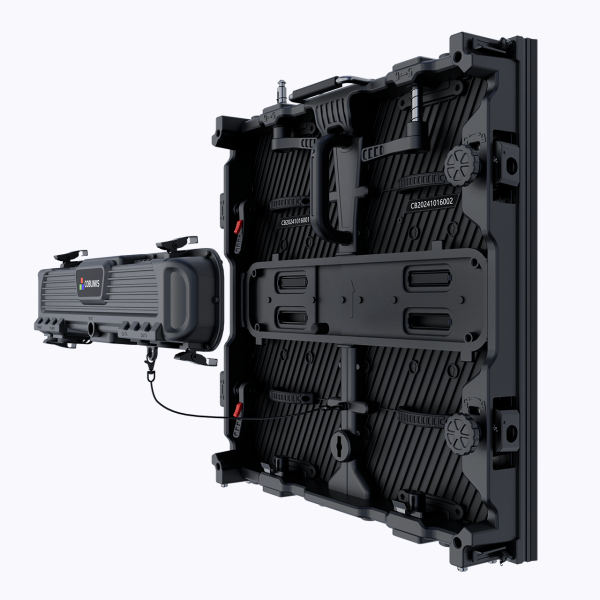

The control box can take out from the back for maintenance
* Control box compatible
— the control box for different pixel pitch can be installed in the same frame
1.Curved Installation
The MD series can realize curve connection from -5° convex to +5° concave for an artistic visual performance.MD
2.Irregular Shape
Panels with size 500 x 500mm & 500 x 1000mm can be installed together to be an irregular shape with the ultimate visual experience in stages and exhibition halls

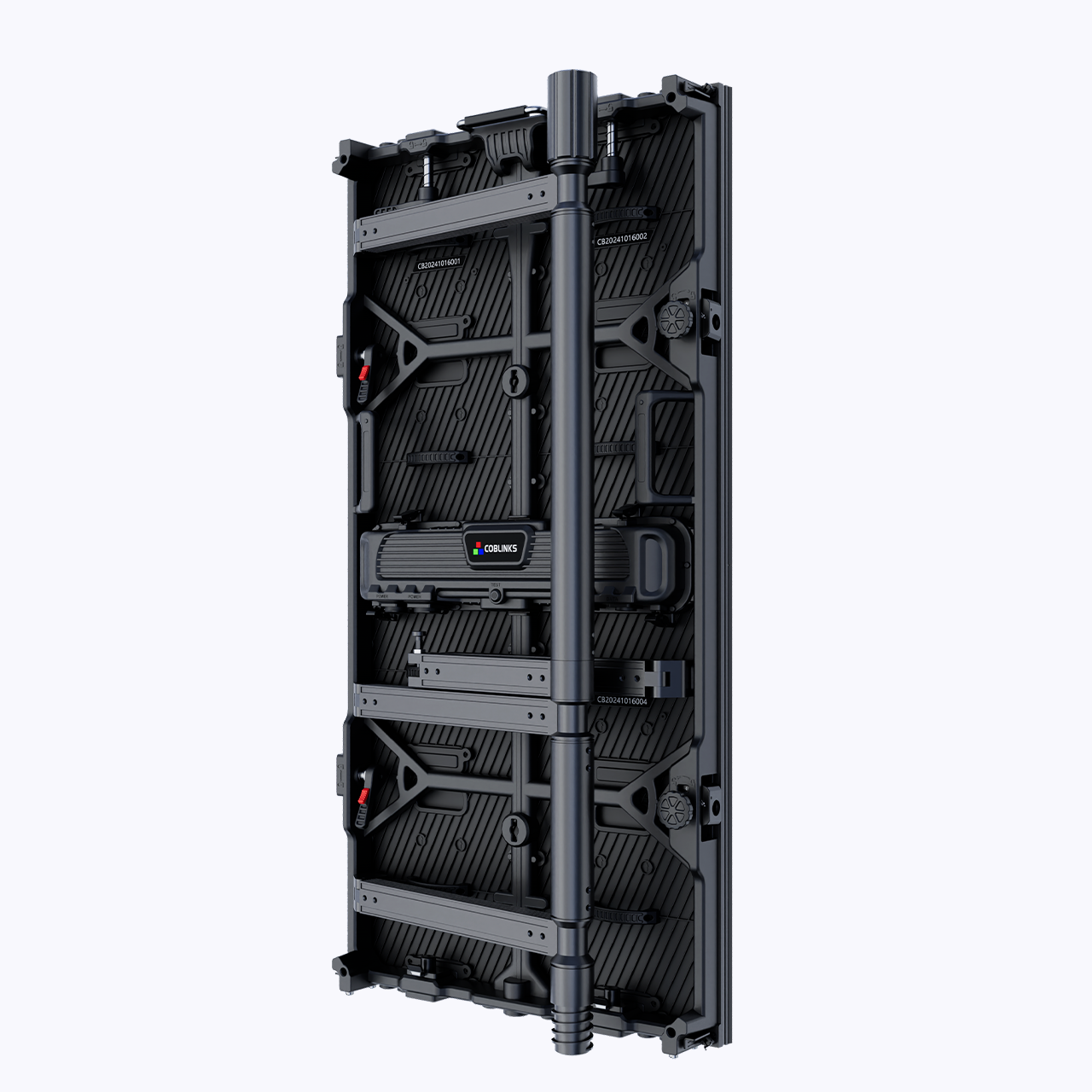

The MD series provides an optional foldable wind bracing system to
ensure the most stable and the safest for outdoor hanging with strong suitable for all kinds of environments

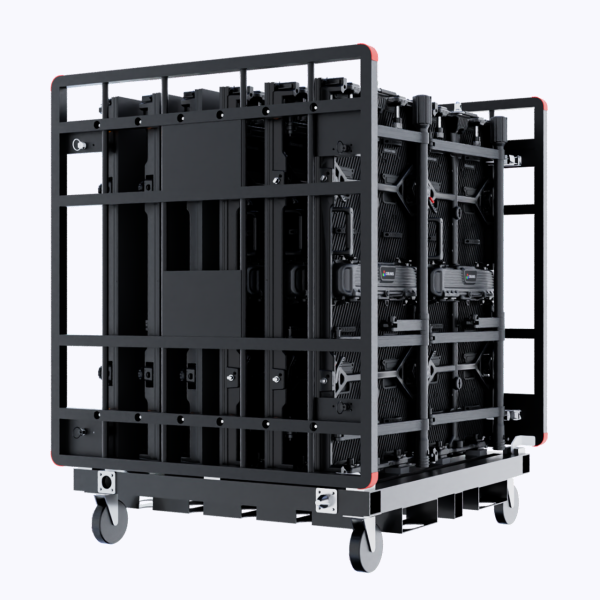

Installed in rows on trusses directly, this dolly system efficiently reduces the installation time and and a 12-in-1 dolly system for quick, secure setups across events.
Flight case for normal stage events
Touring dolly for outdoor touring stages, and 12pcs/dolly for your reference
| Model | MD1.9 | MD2.6 | MD2.9 | MD3.91 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 | 2.9 | 3.91 |
| Physical Density (dot/m²) | 262,144 | 147,456 | 112,896 | 65,536 |
| LED Type | 4 IN 1 | 2 IN 1 | SMD1515 | SMD2020 |
| Module Size (mm) | 250×500 | 250×500 | 250×500 | 250×500 |
| Module Resolution (dots) | 128×256 | 96×192 | 84×168 | 64×128 |
| Cabinet Size (mm) | 500×500×77.5 / 500×1000×77.5 | 500×500×77.5 / 500×1000×77.5 | 500×500×77.5 / 500×1000×77.5 | 500×500×77.5 / 500×1000×77.5 |
| Scanning Mode | 1/32 | 1/24 | 1/21 | 1/16 |
| Cabinet Material | Magnesium alloy | Magnesium alloy | Magnesium alloy | Magnesium alloy |
| Weight (KG/PCS) | 6.7KG / 9.8KG | 6.7KG / 9.8KG | 6.7KG / 9.8KG | 6.7KG / 9.8KG |
| Brightness (cd/m²) | 1000 | 1000 | 1000 | 1000 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Gray Scale (bit) | 16 | 16 | 16 | 16 |
| Input Voltage (V) | AC110-AC220 | AC100-AC220 | AC100-AC220 | AC100-AC220 |
| Avg. Power Consumption (W/m²) | 206 | 206 | 206 | 208 |
| Max. Power Consumption (W/m²) | 620 | 620 | 620 | 620 |
| Maintenance | Front&Rear | Front&Rear | Front&Rear | Front&Rear |
| Curved Angle | 0°/±2.5°/±5° | 0°/±2.5°/±5° | 0°/±2.5°/±5° | 0°/±2.5°/±5° |
| IP Rating | IP40 | IP40 | IP40 | IP40 |
| Operating Temperature (°C) | -20~ +50 | -20~ +50 | -20~ +50 | -20~ +50 |
| Working Humidity (RH) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Storage Temperature (°C) | -30~ +70 | -30~ +70 | -30~ +70 | -30~ +70 |
| Storage Humidity Range (RH) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Life Span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| Model | MD2.9 | MD3.91 | MD4.81 |
|---|---|---|---|
| Pixel Pitch (mm) | 2.9 | 3.91 | 4.81 |
| Physical Density (dot/m²) | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1415 | SMD1921 | SMD1921 |
| Module Size (mm) | 250×500 | 250×500 | 250×500 |
| Module Resolution (dots) | 84×168 | 64×128 | 52×104 |
| Cabinet Size (mm) | 500×500×77.5 / 500×1000×77.5 | 500×500×77.5 / 500×1000×77.5 | 500×500×77.5 / 500×1000×77.5 |
| Scanning Mode | 1/14 | 1/16 | 1/13 |
| Cabinet Material | Magnesium alloy | Magnesium alloy | Magnesium alloy |
| Weight (KG/PCS) | 7KG / 10.5KG | 7KG / 10.5KG | 7KG / 10.5KG |
| Brightness (cd/m²) | 5000 | 5000 | 5000 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° |
| Grey Scale (bit) | 16 | 16 | 16 |
| Input Voltage (V) | AC110-AC220 | AC100-AC220 | AC100-AC220 |
| Avg. Power Consumption (W/m²) | 220 | 220 | 220 |
| Max. Power Consumption (W/m²) | 664 | 664 | 664 |
| Maintenance Mode | Front&Rear | Front&Rear | Front&Rear |
| Curved Angle | 0°/±2.5°/±5° | 0°/±2.5°/±5° | 0°/±2.5°/±5° |
| IP Rating | IP65 | IP65 | IP65 |
| Operating Temperature (°C) | -20~ +50 | -20~ +50 | -20~ +50 |
| Working Humidity (RH) | 10%~90% | 10%~90% | 10%~90% |
| Storage Temperature (°C) | -30~ +70 | -30~ +70 | -30~ +70 |
| Storage Humidity Range (RH) | 10%~90% | 10%~90% | 10%~90% |
| Life Span (H) | ≥100,000 | ≥100,000 | ≥100,000 |
Ultra-Light Magnesium Alloy Frame Lighter than carbon fiber alternatives — faster to handle, easier to install, safer for overhead rigging.
Magnetic Hoisting Design Top-frame magnetic positioning speeds up lifting and alignment during installation.
Foldable Wind-Resistant Frame Engineered for outdoor hanging in strong wind conditions — stable, safe, suitable for all environments.
Curved Screen Support 0° / ±2.5° / ±5° bend angles for flat, concave, or convex configurations.
Irregular Assembly Mix different cabinet sizes to create custom shapes — ideal for large-scale stages and exhibition installations.
Quick Assembly & Easy Maintenance Tool-free magnetic frame design reduces setup time and simplifies on-site servicing.
Outdoor Festivals & Large-Scale Events Wind-resistant frame handles demanding outdoor environments — safe for high-altitude rigging in open-air venues.
Architectural & Creative Installations Irregular cabinet assembly enables custom shapes and large-format creative displays for landmark buildings and public spaces.
Exhibition Halls & Trade Pavilions Mix cabinet sizes to fill non-standard spaces with seamless, high-impact visuals.
Stadium & Arena Screens Curved screen support and magnetic hoisting make large overhead installs faster and more precise.
Permanent Outdoor Signage Foldable wind-bracing system built for year-round outdoor exposure — no compromise on structural safety.
Retail & Commercial Spaces Lightweight magnesium frame keeps installation simple for interior fit-outs where ceiling load is a concern.
Outdoor LED displays are designed to withstand harsh environmental conditions.
Waterproofing: Most quality outdoor LED screens have high ingress protection (IP) ratings, typically IP65 or IP66. IP65 means they are dust-tight and protected against low-pressure water jets from any direction, while IP66 can handle powerful jets or heavy rain. However, they are not submersible.
UV resistance: The display's housing, face cover, and silicone potting are treated with UV stabilizers and coatings to resist degradation from sunlight. This prevents yellowing, cracking, or loss of structural integrity for several years (often 5–10+). However, prolonged intense UV exposure will eventually cause some fading of black materials or slight reduction in brightness and contrast.
In summary, outdoor LED displays are highly water- and UV-resistant for real-world use, but no electronic product is entirely immune to aging or extreme conditions. Regular maintenance extends their lifespan.
Yes, LED screen displays can certainly be used outdoors, and they are widely deployed in applications such as digital billboards, sports stadium screens, public information displays, and traffic signs.
However, outdoor LED displays require specific design features to withstand harsh environmental conditions. Unlike indoor units, outdoor LED screens must have high brightness — typically 5,000 to 10,000 nits or more — to remain clearly visible under direct sunlight. They also need robust weatherproofing, usually rated IP65 or higher, meaning they are dust-tight and protected against low-pressure water jets or heavy rain.
In addition, outdoor LED displays are built with UV-resistant materials to prevent discoloration and degradation from sunlight, as well as wide operating temperature ranges (e.g., -20°C to 50°C) and corrosion-resistant coatings for coastal or humid areas. Many models also include automatic brightness adjustment sensors for energy efficiency and better visibility at night. Proper ventilation or cooling systems may be integrated to manage heat buildup.
With these enhancements, outdoor LED screens deliver bright, vivid images and reliable performance for years, making them an excellent choice for advertising, live events, and public announcements. Nonetheless, professional installation and regular maintenance are recommended to ensure longevity and safety, especially in extreme climates.
