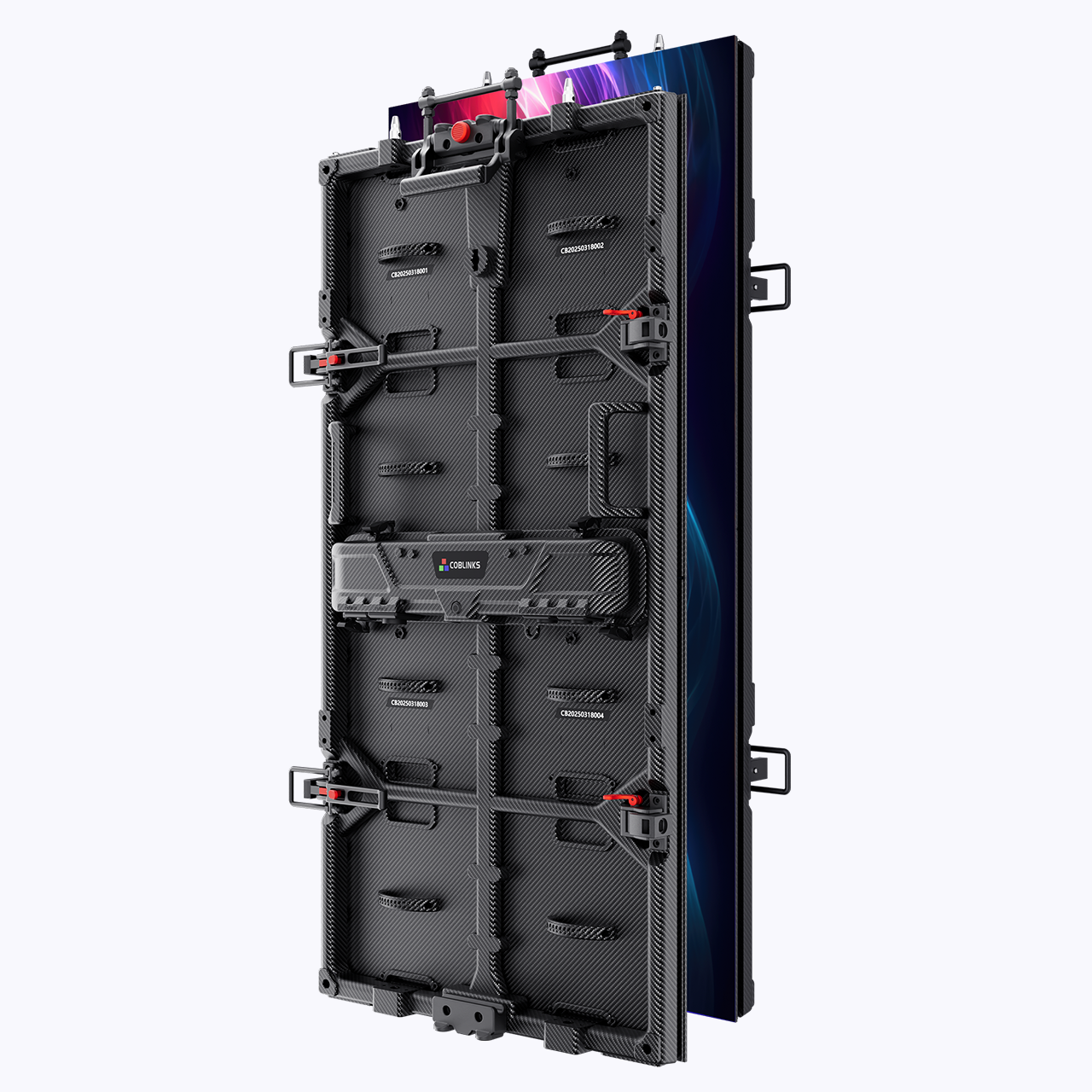

Durable Meets Lightweight
CL Series delivers unmatched durability and lightweight design,providing quick installation through its fast smart-lock system,outdoor foldable wind-resistent frame and fast hanging transportation dolly .CL series is ideal for building large LED walls fast and sufficiently

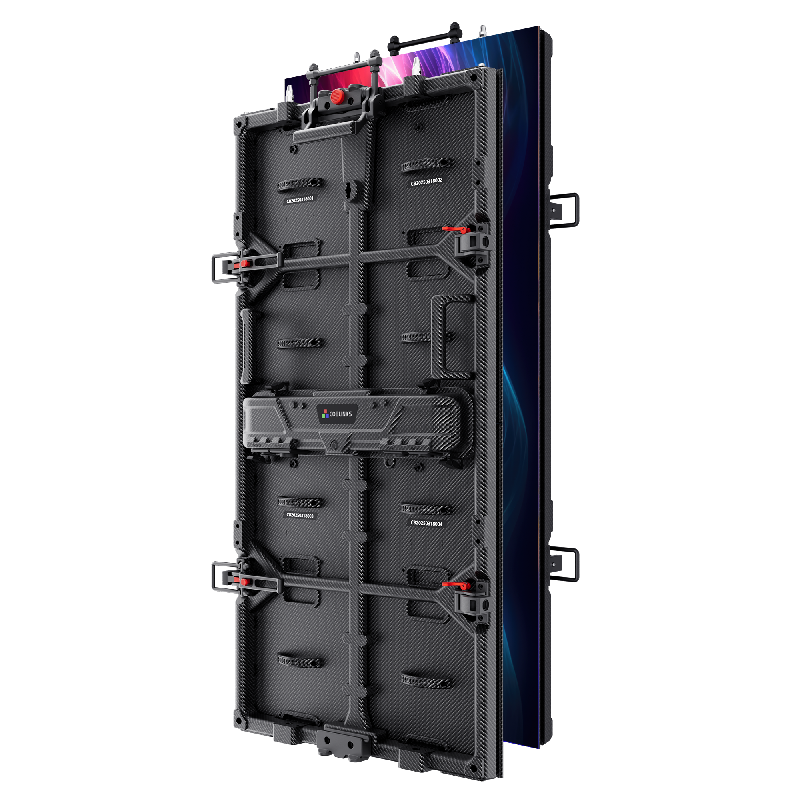

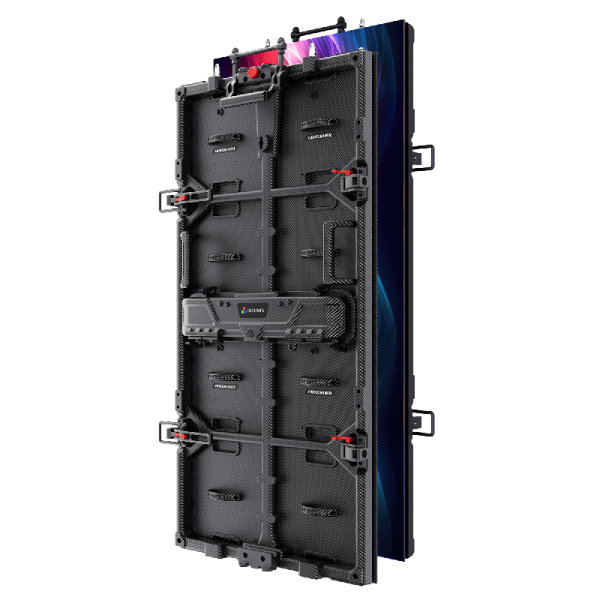

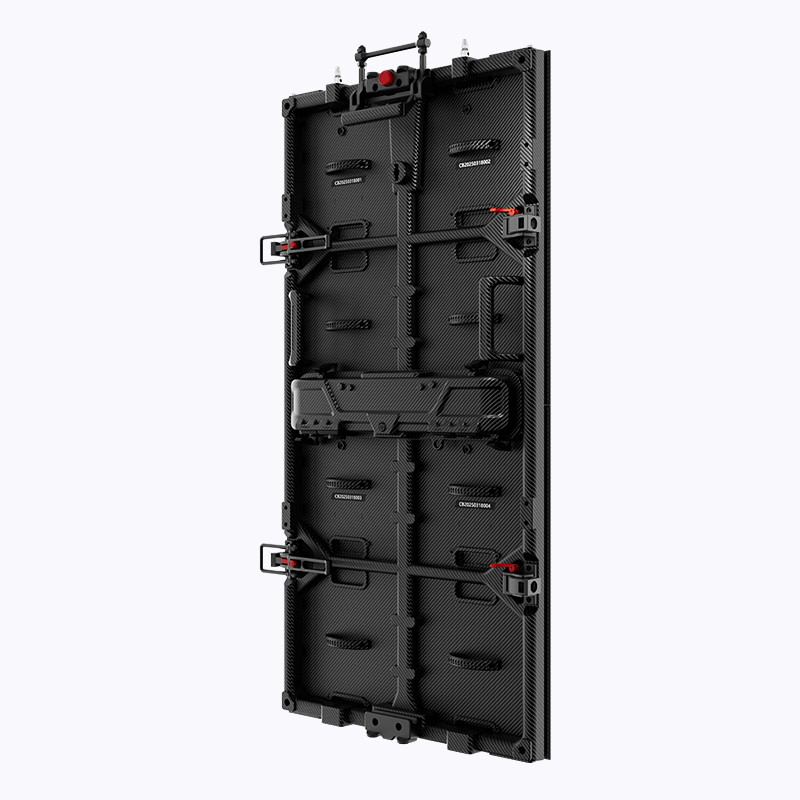

The CL carbon fiber series features an innovative full-carbon design with only 45mm thickness that delivers maximum strength while maintaining outstanding lightness — with 500x1000mm panels weighting just 8.5KG/PC and outdoor just 8.5KG/PC.This advanced construction effectively resists warping,minimizes vibration transmission,and extends product lifespan,making it ideal for demanding lightweight rental applications where both durability and portability are critical.
Using the best components,the rigid frame of the CL series enables flawless connection even the smallest P1.9mm pixel pitch,which stands out with an unrivaled visual performance.Providing 4in1 anti-collision LED,the CL series supports a high contrast ratio and wide color gamut.
1.Fast Smart-lock System
Fast Smart-lock system features high-strength king pins with auto-magnetic cabinet design and horizontal locking system that enables smooth adjustments ranging from -7.5° to +7.5°.The system saves up to 40% compared to the assembly time for regular LED panels with positioning posts while delivers speed, strength, and certainty in every connection.
2.Strong magnetic design
Improved previous design, 20 large magnets on each module ensures more perfect flatness and safety.

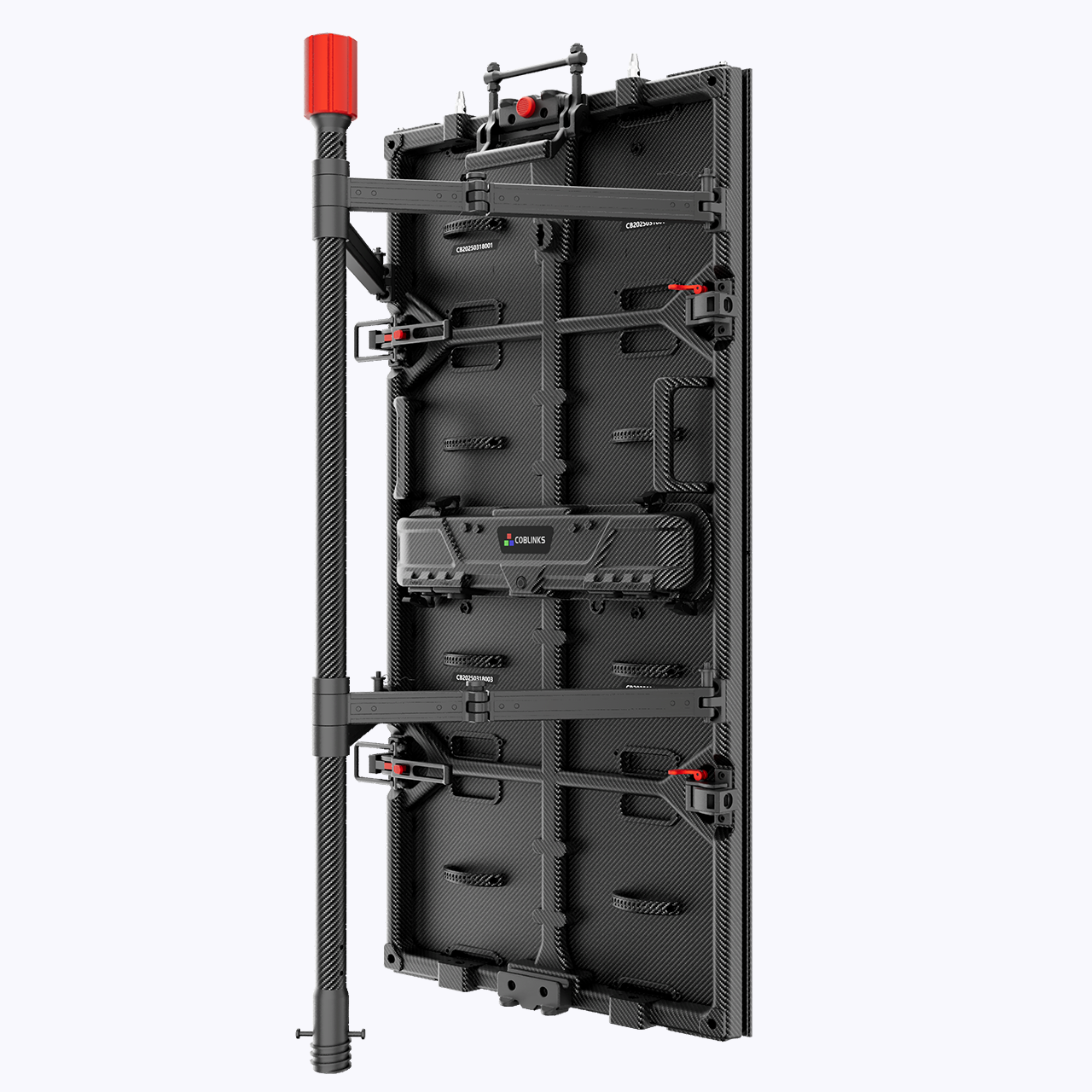

The CL panels can utilize an optional integrated wind-bracing system.When combined with reinforced hanging bars,it supports secure installation up to 20meters high.The modules,power box and receiving card are all mounted directly on the rigid frame,creating a fully integrated LED solution offering higher precision and less weight than conventional systems.

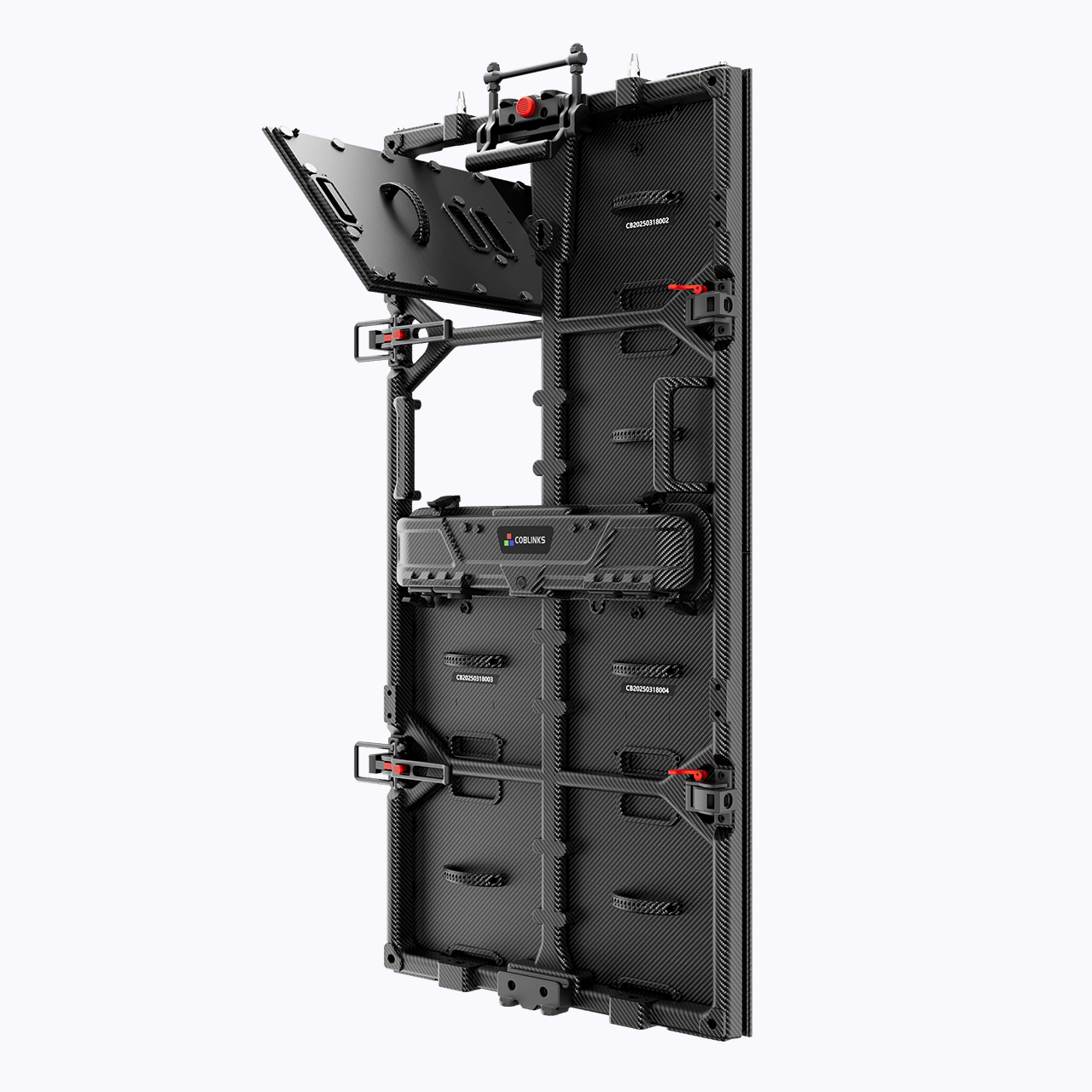

To facilitate on-site repair and quick maintenance,the modular design of CL series offers front as well as rear module replacement.Plus, the uniform modules and controlling box for 500x1000mm panel enhance cost-effective maintenance.

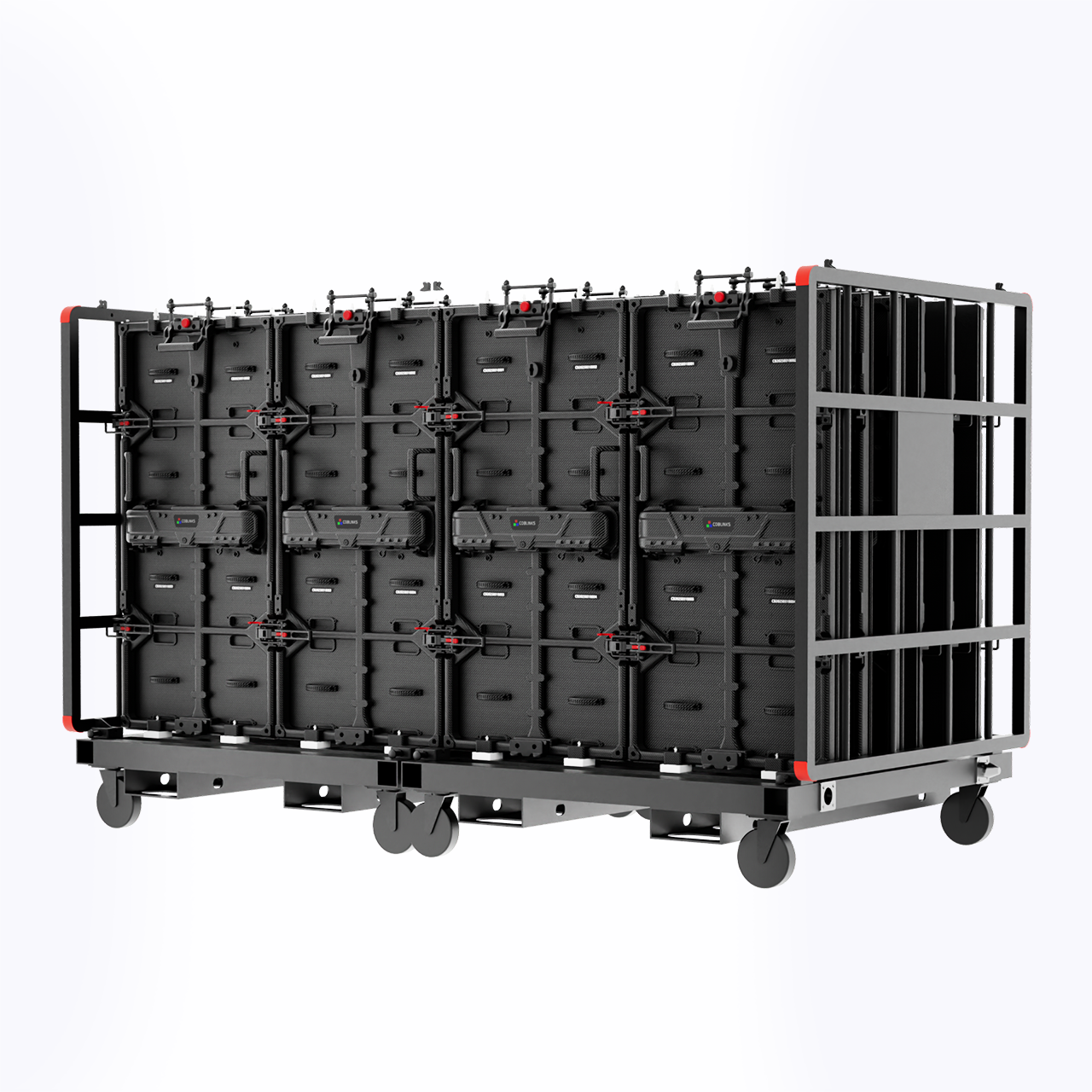

The 12-in-1 dolly system maximizes shipping efficiency with 40HQ container-optimized packing.This space-saving design delivers greater payload capacity while ensuring global transport readiness.
The CL series provides a complete fast-hanging touring solution with 500x1000mmx45mm panels,hanging bars,integrated foldable air frame system,and 12-in-1 dolly systems,all working together to enable crane-assisted now hoisting for quick and stable installation.
The CL series offers optional flight case solution with tour-ready protection–incluidng a 6-in-1 or 8-in-1 case for 500x1000mm panels,both engineered with road-proven durability to safeguard your equipment during transport.
| Model | CL1.9 | CL2.6 | CL3.91 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 | 3.91 |
| Physical Density (dot/m²) | 262,144 | 147,456 | 65,536 |
| LED Type | 4 IN 1 | 2 IN 1 | SMD2020 |
| Module Size (mm) | 250×500 | 250×500 | 250×500 |
| Module Resolution (dots) | 128×256 | 96×192 | 64×128 |
| Cabinet Size (mm) | 500×1000×45 | 500×1000×45 | 500×1000×45 |
| Scanning Mode | 1/16 | 1/16 | 1/16 |
| Cabinet Material | Carbon fiber | Carbon fiber | Carbon fiber |
| Weight (KG/PCS) | 8.5 KG/PCS | 8.5 KG/PCS | 8.5 KG/PCS |
| Brightness (cd/m²) | 1000 | 1000 | 1000 |
| Refresh Rate (Hz) | ≥7680 | ≥7680 | ≥7680 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° |
| Grey Scale (bit) | 16 | 16 | 16 |
| Input Voltage (V) | AC110-AC220 | AC110-AC220 | AC110-AC220 |
| Avg. Power Consumption (W/m²) | 206 | 206 | 206 |
| Max. Power Consumption (W/m²) | 620 | 620 | 620 |
| Maintenance Mode | Front&Rear | Front&Rear | Front&Rear |
| Rotation Angle | 0°/±2.5°/±5°/±7.5° | 0°/±2.5°/±5°/±7.5° | 0°/±2.5°/±5°/±7.5° |
| IP Grade | IP40 | IP40 | IP40 |
| Working Temperature (°C) | -20 ~ +50 | -20 ~ +50 | -20 ~ +50 |
| Working Humidity (RH) | 10%~90% | 10%~90% | 10%~90% |
| Storage Temperature (°C) | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 |
| Storage Humidity Range (RH) | 10%~90% | 10%~90% | 10%~90% |
| Life Span (H) | ≥100,000 | ≥100,000 | ≥100,000 |
| Model | CL2.9 | CL3.91 | CL4.81 |
|---|---|---|---|
| Pixel Pitch (mm) | 2.9 | 3.91 | 4.81 |
| Physical Density (dot/m²) | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1415 | SMD1921 | SMD1921 |
| Module Size (mm) | 250×500 | 250×500 | 250×500 |
| Module Resolution (dots) | 84×168 | 64×128 | 52×104 |
| Cabinet Size (mm) | 500×1000×45 | 500×1000×45 | 500×1000×45 |
| Scanning Mode | 1/14 | 1/16 | 1/13 |
| Cabinet Material | Carbon fiber | Carbon fiber | Carbon fiber |
| Weight (KG/PCS) | 9KG/PCS | 9KG/PCS | 9KG/PCS |
| Brightness (cd/m²) | 5000 | 5000 | 5000 |
| Refresh Rate (Hz) | ≥7680 | ≥7680 | ≥7680 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° |
| Grey Scale (bit) | 16 | 16 | 16 |
| Input Voltage (V) | AC110-AC220 | AC110-AC220 | AC110-AC220 |
| Avg. Power Consumption (W/m²) | 220 | 220 | 220 |
| Max. Power Consumption (W/m²) | 664 | 664 | 664 |
| Maintenance Mode | Front&Rear | Front&Rear | Front&Rear |
| Rotation Angle | 0°/±2.5°/±5°/±7.5° | 0°/±2.5°/±5°/±7.5° | 0°/±2.5°/±5°/±7.5° |
| IP Grade | IP65 | IP65 | IP65 |
| Working Temperature (°C) | -20~ +50 | -20~ +50 | -20~ +50 |
| Working Humidity (RH) | 10%~90% | 10%~90% | 10%~90% |
| Storage Temperature (°C) | -30~ +70 | -30~ +70 | -30~ +70 |
| Storage Humidity Range (RH) | 10%~90% | 10%~90% | 10%~90% |
| Life Span (H) | ≥100,000 | ≥100,000 | ≥100,000 |
Ultra-Slim 45mm Profile Only 45mm thick. Carbon fiber cabinet keeps the entire screen structure low-profile and easy to transport.
Lightweight Carbon Fiber Significantly lighter than standard aluminum panels — less strain on trusses, lower shipping costs, faster crew handling.
40% Faster Installation Smart-lock system cuts installation time by up to 40% versus standard LED panels. Ideal for tight event schedules and touring productions.
Front & Rear Maintenance Integrated design with independent power box. Modules accessible from both front and rear — faster servicing without full disassembly.
Magnetic Flatness Enhancement Magnetic module design ensures precise panel alignment and a consistently flat screen surface across the full display wall.
Flexible Bend Angles 0° / ±2.5° / ±5° / ±7.5° — configure flat, concave, or convex screens to suit any stage layout or architectural requirement.
Touring Dolly Compatible Panels load directly onto touring dollies for section-by-section truss installation — saves time and reduces labour costs on multi-day productions.
Concert & Music Festivals Main stage backdrop screens, side fills, and IMAG displays. Fast setup and teardown between tour dates — touring dolly system keeps crew efficient.
Corporate Events & Product Launches High-impact LED walls for brand presentations, product reveals, and award ceremonies. Clean, slim profile suits premium indoor venues.
Trade Shows & Exhibitions Modular panel system builds custom screen sizes to fit any booth or exhibition hall. Quick assembly reduces on-site build time.
Broadcast & Live Streaming Studios ≥7,680 Hz refresh rate eliminates flicker for cameras. Suitable for permanent studio installs or temporary broadcast sets.
Touring Productions & Theater Flexible bend angles (±7.5°) enable curved screen designs. Lightweight carbon fiber reduces truss load for complex rigging setups.
Sports Events & Arenas Perimeter LED boards, scoreboard displays, and large-format screens for stadiums and indoor arenas.
Outdoor Advertising & Digital Signage IP65-rated for permanent outdoor installations. 5,000 cd/m² brightness ensures visibility in direct sunlight.
Rental & AV Companies Designed specifically for the rental market — durable, fast to deploy, easy to maintain, and compatible with standard truss systems.
Carbon fiber LED panels offer several distinct advantages over traditional aluminum cabinets, primarily in weight, strength, and thermal management.
Weight: Carbon fiber is significantly lighter than aluminum — often by 30% — which reduces structural load on mounting systems, trusses, and walls. This makes installation, transport, and rigging faster, safer, and more cost-effective, especially for large-scale or touring LED displays.
Structural rigidity: Carbon fiber has a higher stiffness-to-weight ratio. It resists bending and twisting better than aluminum, ensuring panels remain flat and aligned even under mechanical stress or temperature changes — improving image uniformity and reducing visible seams.
Thermal performance: Carbon fiber dissipates heat more efficiently than aluminum, helping maintain lower operating temperatures, extending LED lifespan and color consistency. It is also non-corrosive and immune to galvanic corrosion in humid or outdoor environments.
While more expensive upfront, carbon fiber panels' durability and lower shipping and maintenance costs often yield long-term savings.
The lightweight design of CL Series panels significantly reduces installation costs in several key ways. Reduced weight minimizes transportation requirements, allowing more panels per truckload and lowering logistics costs. Lighter panels also reduce the need for cranes and heavy lifting equipment on site.
Furthermore, smaller crews can install panels faster, reducing labor hours and accelerating project timelines. Ease of handling also simplifies repair and replacement, lowering maintenance costs over the panel's lifecycle.
Yes. Carbon fiber LED panels are exceptionally durable and well-suited for frequent transportation, as demonstrated by their widespread use in touring stage productions.
An LED panel uses an array of light-emitting diodes (LEDs) as pixels to produce images. Each LED emits light when an electric current passes through it. Thousands of tiny red, green, and blue LEDs are arranged in a grid, and their intensity is controlled using pulse-width modulation (PWM) — rapidly switching each LED on and off to vary brightness and enable millions of color combinations.
Large LED displays are built from modular panels using a matrix system to address individual LEDs row by row, refreshing many times per second for smooth motion. A controller sends video data to driver ICs, which regulate current to each LED — enabling bright, energy-efficient, and scalable displays for both indoor and outdoor use.
