Large digital displays have become an important tool for brands, event producers, retailers and professional AV companies that need to deliver impactful visual content. However, creating a large screen that appears uniform rather than like a collection of separate cabinets requires careful consideration of panel structure, alignment, pixel pitch and installation. An LED panel wall addresses these challenges through modular design, allowing multiple panels to work together as one continuous visual surface.
At Coblinks, we develop professional LED display solutions for global customers that require reliable performance and customized configurations. Our CL Series demonstrates how a lightweight carbon fiber LED panel can combine precise connections, flexible installation and fine pixel pitch technology to support large scale digital screens.
LED Panel Wall Enables Precise Modular Assembly
The foundation of a seamless large screen is the accurate connection between individual panels. When cabinets are not properly aligned, visible gaps or uneven surfaces can interrupt the image and reduce the overall quality of the display.
Our CL Series uses a rigid carbon fiber structure and a fast smart lock system to help create precise cabinet connections. Each panel measures 500 × 1000 × 45 mm, while the integrated magnetic module design helps improve flatness across the display surface. The panels also support rotation angles of 0°, ±2.5°, ±5° and ±7.5°, providing flexibility for flat, concave or convex screen configurations.
This modular approach means that a large LED panel wall can be assembled from multiple standardized units while maintaining a consistent visual surface. For professional display integrators and rental partners, this flexibility is valuable when projects require different screen dimensions or configurations.
Fine Pixel Pitch Improves Large Screen Image Quality
Physical panel alignment is only part of creating a seamless digital display. Pixel pitch also influences how detailed content appears, particularly when viewers are positioned relatively close to the screen.
The CL Series includes indoor models CL1.9, CL2.6 and CL3.91. The CL1.9 model provides a 1.9 mm pixel pitch with a physical density of 262,144 dots per square meter. Indoor models also feature a listed refresh rate of at least 7,680 Hz and a 160° horizontal and vertical viewing angle. These specifications support detailed and smooth visual presentation for professional indoor applications.
For customers building a large LED panel display, selecting the appropriate pixel pitch according to viewing distance and application requirements is essential. A properly selected pixel pitch helps maintain image clarity while avoiding unnecessary investment in a finer specification than the project requires.
Lightweight Design Simplifies Large Screen Installation
Installing a large LED panel wall often involves handling and connecting a considerable number of panels, making cabinet weight an important factor in the installation process. A lighter cabinet can make transportation, positioning and panel assembly easier for installation teams.

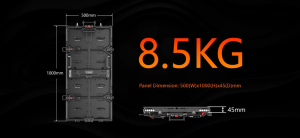

The Coblinks CL Series uses carbon fiber cabinets measuring just 45 mm in thickness. Each 500 × 1000 mm indoor panel weighs 8.5 kg, while outdoor models weigh 9 kg. Combined with the fast smart-lock system, this lightweight design helps installation teams handle and connect panels more efficiently when building large LED screens.
LED Panel Supports Flexible Indoor And Outdoor Applications
A seamless large screen does not necessarily have to be a flat rectangle. Modern visual projects can require curved structures, different dimensions and specialized installation environments.
Our LED panel wall solution supports flexible configurations for applications such as concerts, corporate events, exhibitions, broadcast environments and other professional visual installations. The CL Series provides both indoor and outdoor specifications. Its outdoor models offer 5,000 cd/m² brightness and an IP65 rating, while the indoor models are rated at 1,000 cd/m² and IP40.
This range allows our customers to select a suitable LED panel configuration based on environmental conditions and visual requirements rather than using one fixed specification for every project.
Why Coblinks Supports Professional Large Screen Projects
Since 2017, Coblinks has focused on LED display research, development and manufacturing. We operate a 5,000 square meter production facility and provide customized ODM and OEM solutions for international customers. Our manufacturing and R&D capabilities support customers across Europe, America, Japan and South Korea.
We understand that professional partners often need more than standard products. Through our customization capabilities, we work with customers to develop display configurations according to project requirements, including specialized structures and accessories. Our engineering team can provide support from product development through technical implementation.
For overseas rental companies and AV partners, Coblinks supplies LED display products for their own projects and rental operations. We do not provide rental services ourselves. Instead, we focus on manufacturing and customized processing, helping our partners obtain reliable LED panel solutions suited to their markets.
Building Seamless Digital Displays With Coblinks
Creating a large digital screen involves more than placing individual panels side by side. Accurate cabinet connections, suitable pixel pitch, lightweight construction, flexible angles and efficient installation all contribute to the final result.
With our CL Series LED panel wall, Coblinks combines carbon fiber construction, precise modular connections and flexible configurations to help professional customers build large scale visual systems. Coblinks combines in-house manufacturing and customization capabilities to provide display solutions that match the technical and application requirements of different projects.
